Description

The MESI mTABLET ECG module is an advanced medical device designed to perform 12-lead electrocardiograms. This innovative system is an integral part of the MESI mTABLET ECG platform, offering a complete solution for acquiring, viewing, and storing ECG signals.

The MESI mTABLET ECG module provides healthcare professionals with a powerful and easy-to-use cardiac diagnostic tool. Its wireless design, intuitive interface, and advanced features enable rapid and reliable assessment of the heart's electrical activity, facilitating the screening and monitoring of cardiac pathologies.

This ECG module is an extension for existing MESI tablets.

Key Features:

- Simultaneous acquisition of all 12 ECG leads
- Wireless technology for flexible use
- Intuitive user interface on MESI mTABLET touchscreen tablet
- Automatic (10 seconds) or manual (up to 5 minutes) recording
- Integrated Glasgow Coma Analyzer algorithm
- Advanced digital filters for optimal signal quality
- Pacemaker detection
- Rechargeable battery for portable use

Technical Specifications:

- ECG unit dimensions: 40 x 4.8 x 13.5 cm
- Weight: 220 g
- Battery: Rechargeable lithium-polymer, capacity 1240 mAh
- Battery life: > 100 examinations per charge
- Sampling rate: 32,000 samples/second/channel
- Resolution: 2.5 μV / 19 bits
- Bandwidth: 0.05 Hz to 150 Hz or 250 Hz

Supplied accessories:

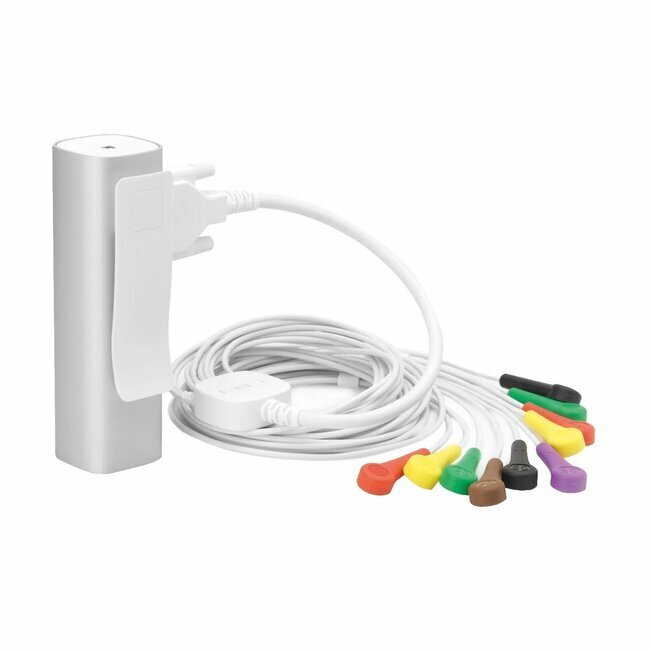

- ECG measurement unit (ECGMD)
- Resting ECG patient cable with snap connectors
- 50 disposable electrodes
- 4-port charging station
- Instructions for use
- The MESI mTABLET is not sold with this extension.
